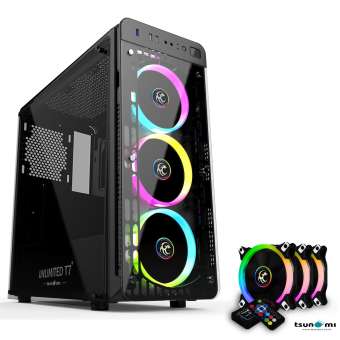

Tsunami Unlimited Series T7 Gaming Case remote version with Circle RGB Cooling fan X3

รหัสสินค้า : Tsunami-516544

Tsunami Unlimited T7

+

Tempered Glass Transparent Panel Gaming Case

+ Tsunami Circle RGB 12cm Cooling fan X3 with remoteSheet Metal Type: SPCC/0.5mm (All Parts Painted in black |Powder Coated)

Housing Material : Black Interior

With Tempered Glass Transparent Side Panel (Thickness 5 mm)

Structure Size: 420(L) x 190(W) x 460(H) mm

Case Size: 460(L) x 190(W) x 460(H) mm (with front panel/stand)

Motherboard Size: ATX/M-ATX

PSU: ATX Power

PSU Location : Bottom

Dust Filter on Bottom & Power Supply Filter

Thermal Solution: ATX 2.0

Cooling Fan & Size:

Front Panel : 12025 Fan*3 set (standard)

Power Supply Cage :12025 Fan *2 set

Real Panel : 12025 Fan *1 set

With Tempered Glass Transparent Side Panel

CPU Cooler Size : ＜ 170 mm

Drive Bays: 3*3.5’’ or HDD 2*2.5’’

Expansion Slots: 7 x Full height slots

Expansion Ports: USB 2.0 * 2 |USB 3.0 *1 |MIC*1 | Earphone*1 |HD audio *1 |

USB 3.0 Hi-Speed Support to 100 m/s

VGA Card Length Support :Maximum 400 mm

Radiator Support : 12 cm / 24 cm on Front|12 cm on Rear Panel

Can be equipped the back line: yes (support Cable Management)

Carton Size: 540 x 260 x 545 mm

N.W. :7.2 Kgs / G.W. : 8.3 Kgs

CE Approved

Tsunami Circle Series

Mono-Rim RGB

-120 RGB Fan Remote ControlWith RGB LED Breathing 366 Modes Auto Play Function

Rifle Bearing Fan

20 Keys Remote Control

Dimensions: 120*120*25 mm

7 Fan Blades Generates High Air Pressure and Air Flow

All Cable are Black Sleeved w/ Black Heat Shrink Tubing |

6 Pin Cooling fan connection port with black Shrink Tubing

8 units Anti-Vibration Rubber Pads

4 units of Standard Screws

Rated Voltage: 12V

Starting Voltage:<= 9.0 V

Power Consumption: 7.2 W

Rated Current: 0.60 A

Speed: 1500RPM +- 10%

Air Flow: 42 CMF

Air Pressure: 1.273 mm-H2O

Noise:22 dBA

MTBF: 40 | 000 Hours

Net Weight: 130 g

Gross Weight: 200 g(Retail box included)

CE/ROHSTsunami

Circle Series RGB

-120 10

+1 Controller Function

DC 12 V 2.5/2P Voltage input port

IBM 2.0/4P infrared receiver port

FAN1- -FAN6 2.0/6P cooling fan connection port

RGB- - 2.0/4P RGB light belt port

Tsunami

Circle

Series RGB

-

120 Remote Controller Function

：

These two button are responsible for the control of Lights power

：

2 Tiers fan speed control; 50% / 100%

：

3 Tiers brightness adjustment

：

8 Tiers LED speed control

：

Plays all LED modes in sequences |5 seconds per modeMode +/-

：

change LED modeShortcut key for 4 main LED pattern Category

：

Triangular light pattern category shortcut key

：

Block building light pattern category shortcut key

：

Dual color rotation

light pattern category shortcut key

：

Meteorite tail light pattern category shortcut key

5mm Tempered Glass Transparent Side Panel

3 x Tsunami Circle Series Mono-Rim RGB-120 RGB Fan

126 CFM air flow

3.819mm-H2O air pressure
